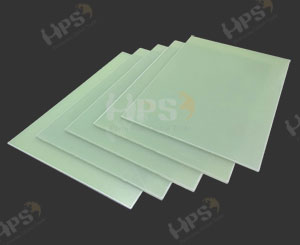

Fiberglass Nema G-10 Sheet
G-10 / FR-4
Green/Water Green/White/Yellow
0.5mm to 100mm (thickness can be customized)
1220 x 1020 mm / 1220 x 2440 mm
Class H (180 ° C)
G10/FR-4 glass epoxy is a composite sheet material that consists of glass fabric, electrical grade epoxy resin. The material is extremely strong and stiff, has a low coefficient of thermal expansion, and outstanding electrical properties. G10/FR-4 is widely used as an insulator for electrical and electronic applications. It is also used for mechanical applications when outstanding strength, stiffness, and excellent creep resistance are required.
Application of G-10 Sheet
Glass fiber woven epoxy sheet G10, is a glass fiber laminate consisting of a woven fiberglass fabric impregnated with an epoxy resin binder for applications up to 180°C with very good thermal, mechanical and electrical properties. Excellent machinability for applications where high mechanical strength is sought.
