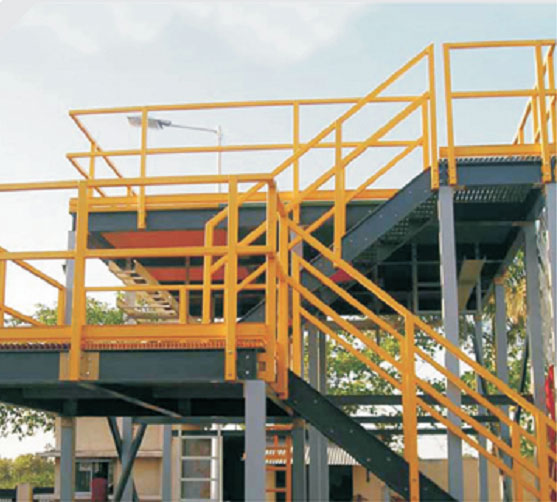

Frp Handrail System
HPS Hand Rail System offers now various solutions for different situations. All systems are designed and tested according to the relevant standards. Systems are designed to satisfy both the end user in terms of performance as well as the contractor in terms of ease of installation and costs.
We provide
- Design or costing services
- Applicable test certificates
- All components in kit form
- Site supervision if required
- Modular for ease of installation
- Light weight to increase tempo of installation
- Strong enough to take load
- Corrosion resistant
- Thermally non-conductive
- Fire Retardant
- UV Protection
- Electronically Transparent
- Bridges & Highways
- Chemical Industries
- Commercial Complex
- Metal Industries
- Mining Industries
- Micro Electronics
- Offshore & Onshore
- Oil & Gas
- Power
- Paper & Pulp
- Water & Wastewater
- Transportation
- Fibre Reinforced Composites
- 3 Systems available (Heavy Duty, Standard Duty, Economy )
Other applications of Handrail & Ladder
HPS has always focused on providing good solutions to various industrial applications.

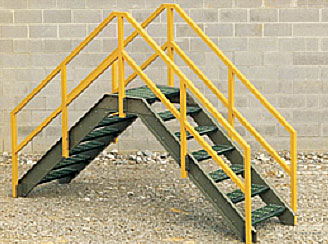

Crossover
This application is very common in industry having long conveying lines. Crossover helps to shorten distance to travel across the conveying lines. Additional platform can also be designed as standing area.

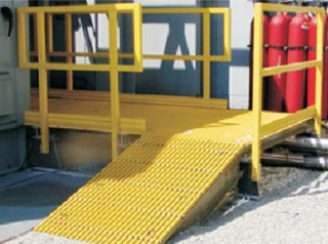

Elevated Ramp with Handrails
It is always relaxing to have ramp instead of stairs when there is no constraint of available space. Ramps are advisable to the entry and exits of stores where materials are shifted in/out with the help of manual fork trolleys.
Guard Rails
HPS guard rails are 100% modular and easy to use. We provide customized handrail and conveyor / machine safety guards that are light weight, corrosion resistant and complying industry standard. Our products are easy to remove for access and cleaning purpose.
Mobile Check Post
Mobile check post is a simple yet very helpful application. It is widely preferred as temporary vehicle check post, surveillance aid at exhibitions, funfairs, conventions, public get-to-gathers, beaches, airports, traffic area etc.
The I bar assemblies are offered in standard size with 40%, 50% & 60% open areas whereas the T bar assemblies have 17%, 33% & 50% open areas as standard. Nomenclature use to describe each industrial grating style refers to its bearing bar style (I or T), its open area and its metric depth.
For example…
I 1560 = I bearing bar : 60% open area : 38mm deep
T 1033 = T bearing bar : 33% open area : 25mm deep
| H- Height | W-Top Width | C-SPacing | Open Area | |
| I-1040 | 25 | 15 | 25 | 40% |
| I-1050 | 25 | 15 | 30 | 50% |
| I-1060 | 25 | 15 | 38 | 60% |
| I-1540 | 38 | 15 | 25 | 40% |
| I-1550 | 38 | 15 | 30 | 50% |
| I-1560 | 38 | 15 | 38 | 60% |
| T-1033 | 25 | 25 | 38 | 33% |
| T-1050 | 25 | 25 | 50.8 | 50% |
| T-1517 | 38 | 25 | 30.5 | 17% |
| T-1533 | 38 | 25 | 38 | 33% |
| T-1550 | 38 | 25 | 50.8 | 50% |
All dimensions in mm
FRP/GRP Strep Treads
FRP/GRP Moulded Gratings
Molded grating are renowned for their high strength, corrosion resistance in the harshest environments, long life and safety Molded Gratings meet the highest international standards. Produced from carefully selected resin systems, we design to deliver many years of reliable service, outperforming the traditional materials they replace.
Our FRP Gratings are lightweight, easy to fabricate and install. Their acceptance in many major industries has made them the first choice over steel, not only for their performance but cost competitiveness. Comparable with steel at the installed cost stage, their low maintenance and long life means a significantly lower life cycle cost than that of steel.
GRP Moulded Gratings are available with Polyester, vinyl ester or phenolic resin. All kinds of resin are self-extinguishing and UV-stabilized.
Applications
Walkways | Platforms | Trench covers | Staircase | Floorings | Foot Bridges | Swimming pool overflow | Fencing | Elevated car parking | Step Treads | Earth pit covers
Industry
Chemical | Food & Beverage | Marine | Oil & Gas | Power | Industry | Buildings | Constructions | Pharmaceuticals | Pulp & Paper | Recreation | Water & Waste Treatment | Shipping | Transportation | Architectural | Telecommunications
Size
FRP Moulded Grating are made into various mesh patterns and surface suitable for demanding applications.
| Product Code | Height (MM) | Mesh Size (MM) | Rib Thickness (MM) | Open Area (%) | Sheet Size (MM) |
| SM 25 X (38 X 38) | 25 | 38 X 38 | 7-5 | 69 | 3660 X 1220 |
| SM 38 X (38 X 38) | 38 | 38 X 38 | 7-5 | 68 | 3660 X 1220 |
| MM 30 X (20 X 20) | 30 | 20 X 20 (Mini) | 7-5 | 42 | 2003 X 740 |
| SM 50 X (50 X 50) | 50 | 50 X 50 | 8-5 | 71 | 3660 X 1220 |
| RM 25 X (25 X 100) | 25 | 25 X 100 | 6.35 | 68 | 3660 X 1220 |
Surface
